DX SeriesSingle Sided
Made in New Zealand
DX1000DX1500
Multiroom Gas Fireplaces
The DX Series combines ultra-wide flame action with Escea’s Heat Ducting Technology, which provides heat into several rooms and evenly distributes heat within the same room. At 1m or 1.5m wide these gas fireplaces make a dramatic statement. Reflective side panels give the appearance of an even wider fireplace and add to the infinite flame effect.
Customise the look of your fireplace by choosing between a variety of different fuel beds and frames. With its minimalist aesthetic, the DX Series works with any interior style.
Features.
Heat where you want it
Multiroom, Escea’s Heat Ducting Technology, captures up to 90% of the available heat and carries it throughout the house via ceiling and floor vents. The ducting technology allows you to provide heat to more than one room in your home.
Room Sealed Design.
Escea indoor fireplaces are all glass-fronted with power flueing, so the room air and the firebox air do not mix. This not only helps with heat efficiency, it also makes them airtight and safe from fumes. Giving you a dry and healthy home, with complete peace of mind.
Design Freedom.
Escea’s Powered Direct Vent Flue uses efficient fan technology to heat the room but not the flue. The system also allows the flue to run up, down, and even horizontally - giving you the design flexibility to put your fireplace anywhere.
Double the Appeal.

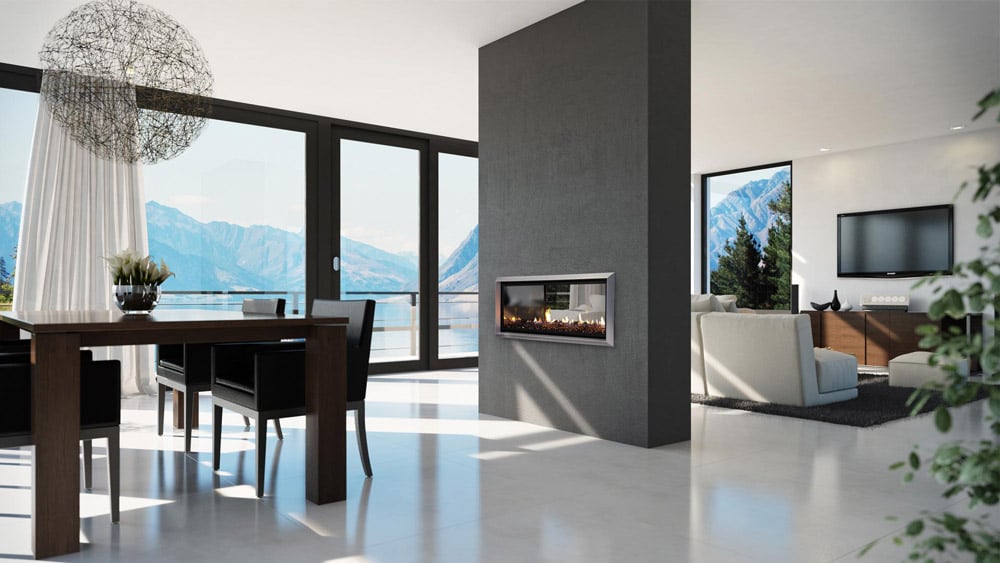

Escea’s DX Series fireplaces can be single sided or double sided. The see-through, double sided fire option is a great way to connect two spaces and makes for a dramatic room divider.
TV right above.
TVs and fireplaces just go together. And this fireplace has a reduced TV clearance minimum of 200mm above the top of the firebox, for your screen viewing pleasure.
Walk into Warmth.
Escea SmartHeat connects your fire to your home network and gives you control of your fireplace from your smartphone. Whether you’re driving home from work on a cold winter’s night, or just relaxing on the couch…the perfect temperature is only a swipe away.
Wire Mesh Screen (Optional).
As an extra, you can add a deflector screen to increase the contrast of the flame and to reduce reflections. The screen also makes it more difficult for little fingers or loose clothing to touch the hot glass.
DX Surround Choice.
This fireplace has Zero Rated clearance which means the interior wall stays cool enough to handle most materials. There’s no need for expensive fire-rated wall constructions and when it comes to the fireplace surround, you have a wider range of choices.
Articles.
Specifications.
- Max Energy Input33 MJ/hr
- Gas TypeNatural Gas or LPG
- Approx. Appliance Size [mm]1328w x 744h x 382d
- Viewable Glass Size [mm]1062w x 360h
- Fuel Bed OptionsWoodland Selection, NZ River Rock, Black Coals, White Coals, Black Crystalight, White Crystalight
- Fascia Options Frameless, Linear Trim, Bevelled Lite (black or silver)
- Star Rating5 Stars (Will vary slightly depending on gas and flue type)
Features
- Heat Ducting
- Smart Heat
- Powerflue
- Double Sided option
- Zero Clearance
- Reflective Side Panels
- Wire Mesh Screen option
Warranty
- Firebox Warranty5 Years
- Total Warranty2 Years
Price includes:Standard Fuel Bed, Reflective Side Panels & Ducting
*Extras:Ducts, Flue, Install
- Max Energy Input40 MJ/hr
- Gas TypeNatural Gas or LPG
- Approx. Appliance Size [mm]1828w x 744h x 382d
- Viewable Glass Size [mm]1562w x 360h
- Fuel Bed OptionsWoodland Selection, NZ River Rock, Black Coals, White Coals, Black Crystalight, White Crystalight
- Fascia Options Frameless, Linear Trim, Bevelled Lite (black or silver)
- Star Rating5 Stars (Will vary slightly depending on gas and flue type)
Features
- Heat Ducting
- Smart Heat
- Powerflue
- Double Sided option
- Zero Clearance
- Reflective Side Panels
- Wire Mesh Screen option
Warranty
- Firebox Warranty5 Years
- Total Warranty2 Years
Price includes:Standard Fuel Bed, Reflective Side Panels & Ducting
*Extras:Ducts, Flue, Install
Design Your Fire.
Downloads.
Manuals and documents for fireplaces.
If for any reason you cannot find, open or print the information you want, please request the document via our Contact Form and we will email you a copy as soon as we can.
Finish
Linear Trim Kit DimensionsLinear trim Kit Installation ManualPoly Pro Flue Installation ManualFlue
Poly Pro Flue Installation ManualExternal Vertical Powerflue Standard DetailExternal Vertical Powerflue Flat Roof DetailExternal Vertical Powerflue Cylinder Flue DetailInternal Vertical Powerflue Standard DetailExternal Vertical Powerflue Chimney Cap DetailExternal Vertical Powerflue Flue Shroud DetailHorizontal Powerflue Standard DetailHorizontal Powerflue Brick Veneer DetailHorizontal Powerflue Concrete Block DetailHorizontal Powerflue AAC-EIFS DetailHorizontal Powerflue Custom Flue Shroud DetailCertification
Gasmark CertificateWarranty Booklet
Warranty BookletFinish
Linear Trim Kit DimensionsLinear trim Kit Installation ManualPoly Pro Flue Installation ManualFlue
Poly Pro Flue Installation ManualExternal Vertical Powerflue Standard DetailExternal Vertical Powerflue Flat Roof DetailExternal Vertical Powerflue Cylinder Flue DetailInternal Vertical Powerflue Standard DetailExternal Vertical Powerflue Chimney Cap DetailExternal Vertical Powerflue Flue Shroud DetailHorizontal Powerflue Standard DetailHorizontal Powerflue Brick Veneer DetailHorizontal Powerflue Concrete Block DetailHorizontal Powerflue AAC-EIFS DetailHorizontal Powerflue Custom Flue Shroud DetailCertification
Gasmark CertificateWarranty Booklet
Warranty Booklet
