TC Series

A sleek inbuilt wood fireplace that combines contemporary design with better home performance.

Inbuilt Wood Fireplace

With strong, clean lines and an expansive viewing window, this inbuilt fireplace delivers a sleek, minimalist aesthetic that blurs the boundary between wall and flame.

‍

But this wood fire isn’t like most others — it not only looks better, it heats smarter. Escea’s Direct Vent Technology delivers greater home performance, making it ideal for modern, sealed homes.

‍

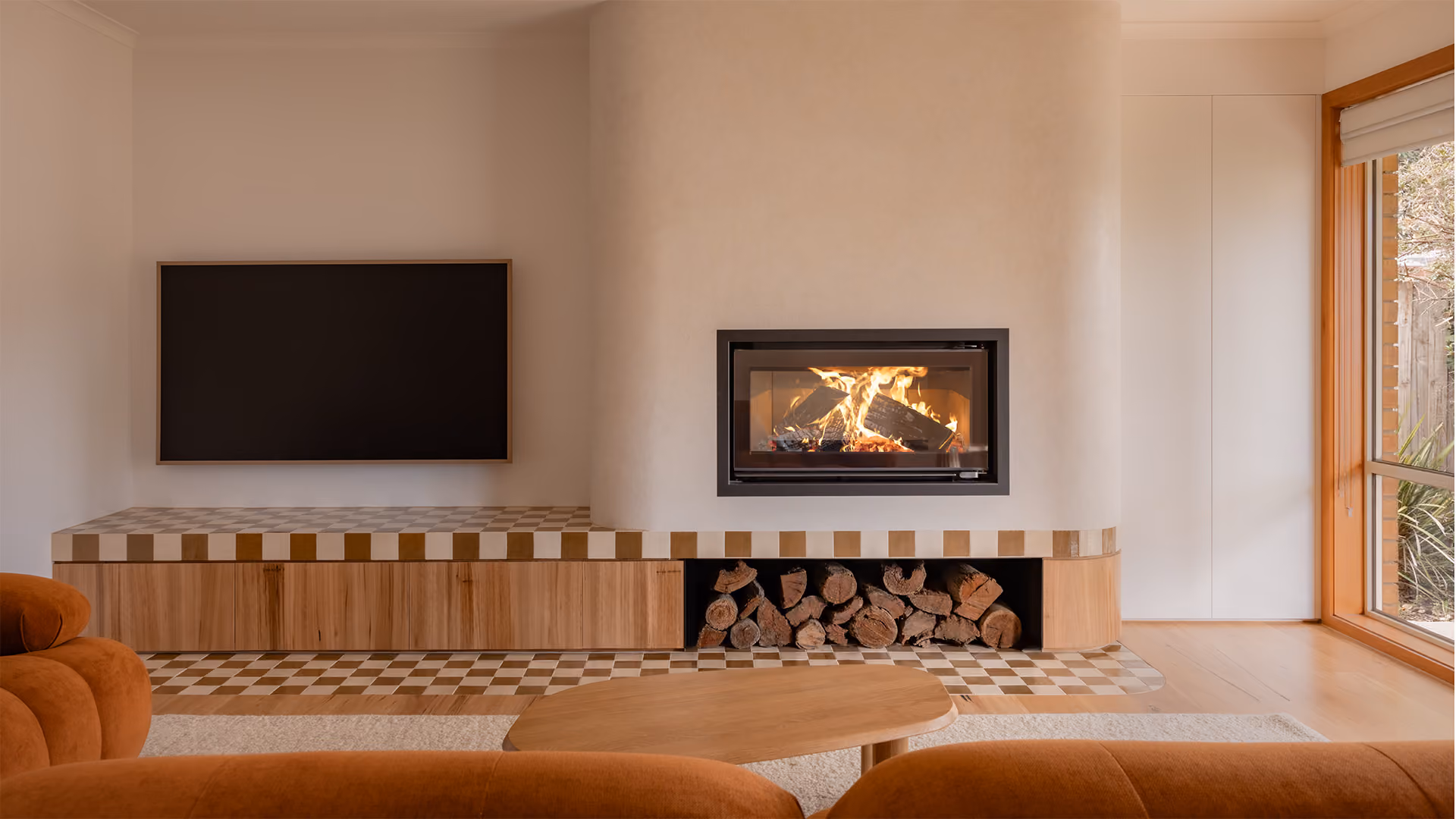

Whether you’re adding cosy warmth to a lounge, heating a large open-plan space, or creating an architectural statement, the TC Series brings both style and smarts to any interior.

Models
Inbuilt

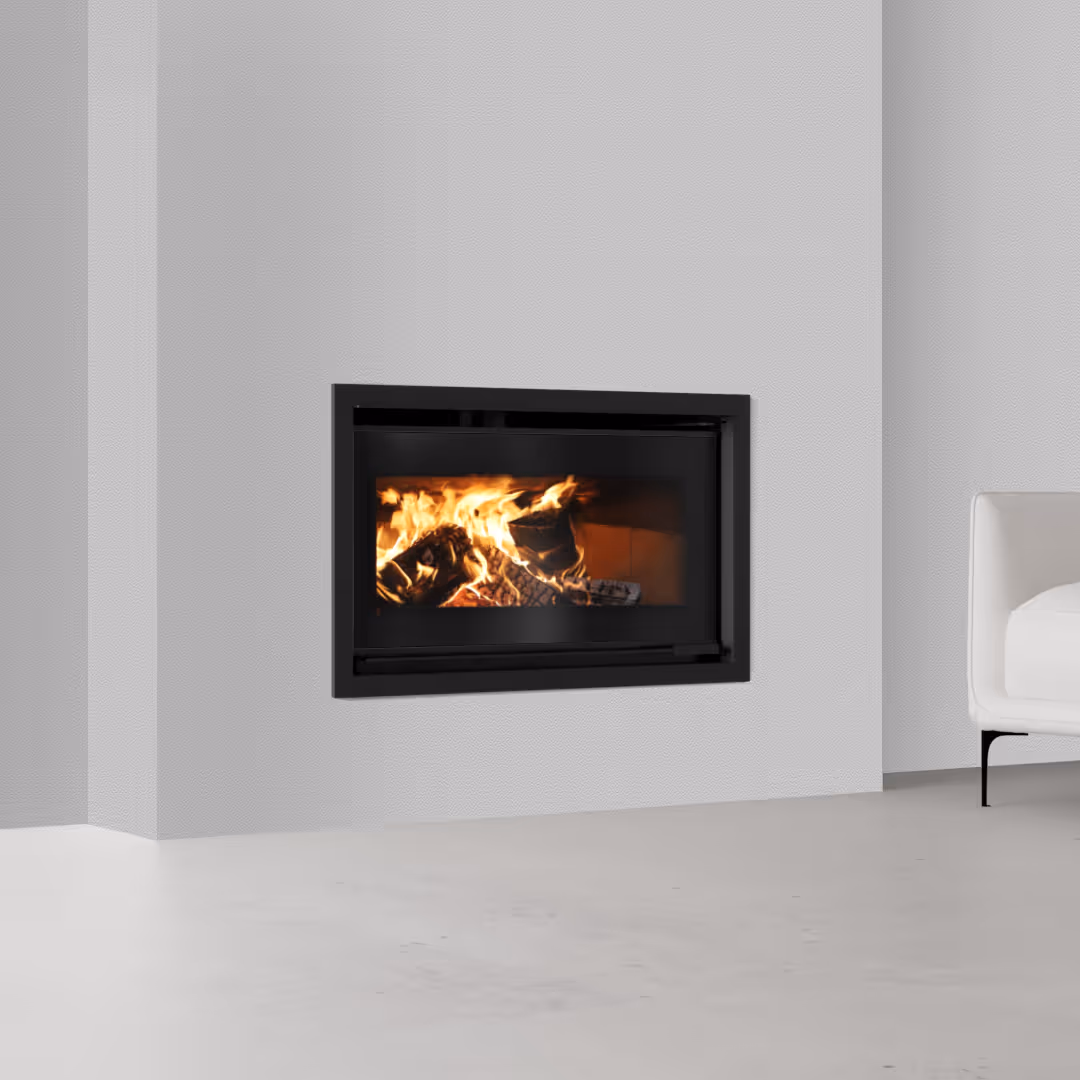

TC970

Compare Specs
View Specs

Better Home Performance

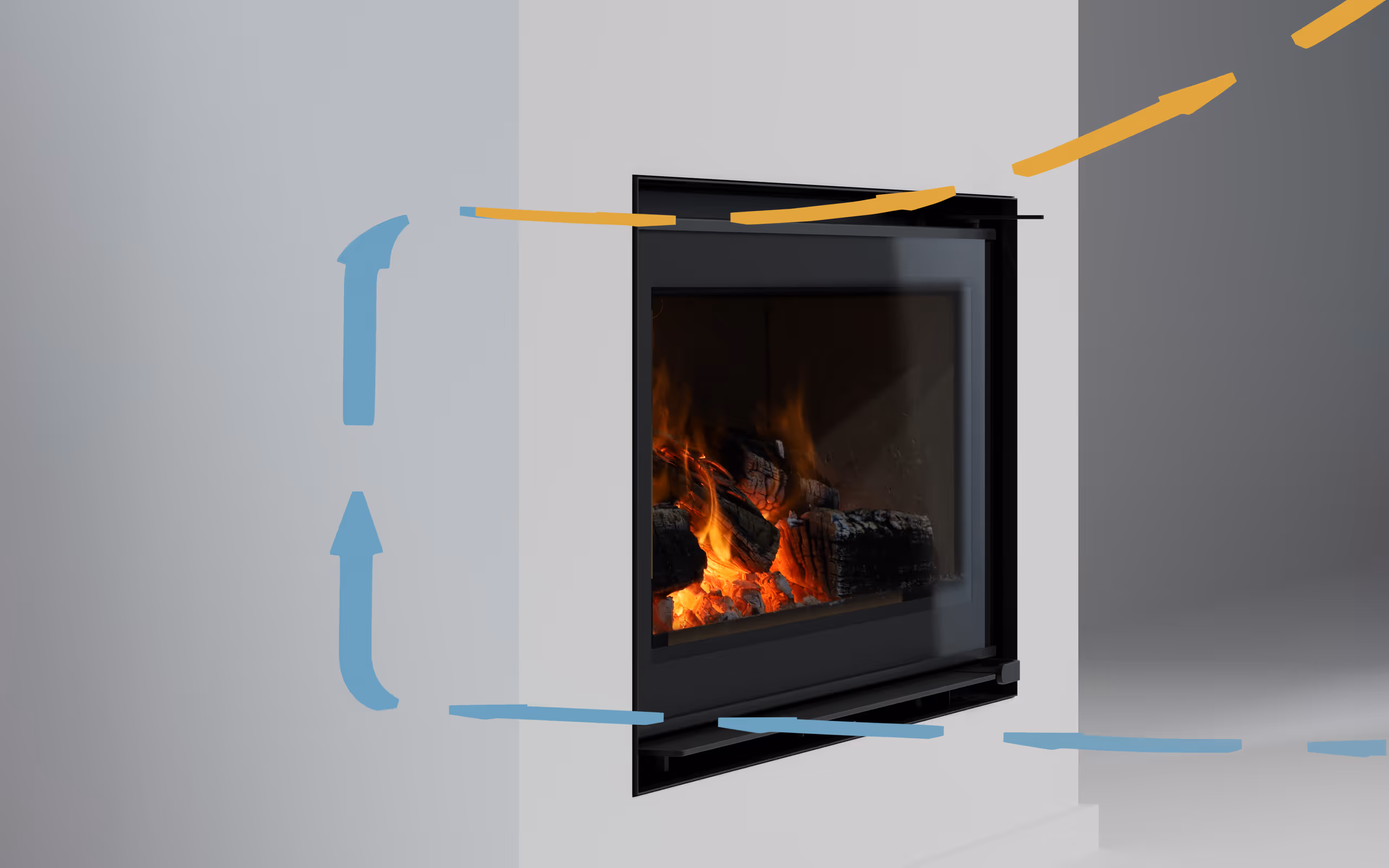

Smarter heating for modern homes. Escea’s Direct Vent Technology keeps the heat in, eliminates draughts, and removes the need for venting – for better overall home performance.

<FeatureSlider>

 <Slide duration="10">

   <Title>More Flame, Less Frame</Title>

   <Description>With pared-back detailing and a minimalist firebox design, there’s more room for what matters most – a generous window that maximises your view of the flames.</Description>

   <Media type="image" file="https://cdn.prod.website-files.com/69294541b21cf576e68ed053/69f7fb30c9b192f56cb9f3ee_Feature%20Tier%202%20-%20More%20Flame%20Less%20Frame.jpg" alt="Less Frame, More Flame" />

 </Slide>

 <Slide duration="10">

   <Title>Optimal Firebox Design</Title>

   <Description>Purposefully engineered with maximum width and angled side-panels, the optimised firebox design allows ample room for logs – for the most efficient heat and greatest heat output for modern homes.</Description>

   <Media type="image" file="https://cdn.prod.website-files.com/69294541b21cf576e68ed053/69f7fb2fe3b415e915f3ee43_Feature%20Tier%202%20-%20Optimal%20Firebox%20Design.jpg" alt="Optimal Firebox Design" />

 </Slide>

 <Slide duration="10">

   <Title>Built to Last</Title>

   <Description>A combination of robust steel construction, skilled craftmanship and precision robotic welding – this wood fireplace is engineered with modern technologies and durable materials to stand the test of time.</Description>

   <Media type="image" file="https://cdn.prod.website-files.com/69294541b21cf576e68ed053/69f7fb308c09facf150c72bb_Feature%20Tier%202%20Built%20to%20last.jpg" alt="Built to Last" />

 </Slide>

</FeatureSlider>

Fireplace, Any Place

Escea’s flexible flue can run up, down or even sideways — giving you the freedom to place your fireplace almost anywhere in the home.

Fireplace, Any Place

Escea’s flexible flue can run up, down or even sideways — giving you the freedom to place your fireplace almost anywhere in the home.

Fireplace, Any Place

Escea’s flexible flue can run up, down or even sideways — giving you the freedom to place your fireplace almost anywhere in the home.

Fireplace, Any Place

Escea’s flexible flue can run up, down or even sideways — giving you the freedom to place your fireplace almost anywhere in the home.

<Gallery>

 <Heading>Features</Heading>

 <Slide>

   <Image file="https://cdn.prod.website-files.com/69294541b21cf576e68ed053/69f7fb306ed050d4c398a8e5_Feature%20Tier%203%20Minimalist%20Handle%2001.avif" alt="Minimalist Handle" />

   <Title>Minimalist Handle</Title>

   <Paragraph>

     Integrated by design, the cool-touch handle blends seamlessly with the fire’s minimalist aesthetic for effortless use and refined control.

   </Paragraph>

 </Slide>

 <Slide>

   <Image file="https://cdn.prod.website-files.com/69294541b21cf576e68ed053/69f7fb3099bc41d968922a45_Feature%20Tier%203%20Zero%20Clearance%20Kit.avif" alt="Zero Clearance Kit" />

   <Title>Zero Clearance Kit</Title>

   <Paragraph>

     Engineered to ensure the TC Series performs safely and at its best, this recommended kit allows you to install the fireplace directly into standard timber framing – no grills, no vents, no compromise on your finished design.

   </Paragraph>

 </Slide>

</Gallery>

‍

Features

Modern gas fireplace with realistic burning logs set in a light-coloured wall next to a wooden side table with books.

Heading

This fireplace has a Zero Clearance rating which means the interior wall stays cool enough to handle most materials.
Modern gas fireplace with realistic burning logs set in a light-coloured wall next to a wooden side table with books.

Heading

This fireplace has a Zero Clearance rating which means the interior wall stays cool enough to handle most materials.
Modern gas fireplace with realistic burning logs set in a light-coloured wall next to a wooden side table with books.

Heading

This fireplace has a Zero Clearance rating which means the interior wall stays cool enough to handle most materials.
No items found.
Accessories
All Accessories

Floating Hearth

Contemporary floating hearth below the fireplace

Floating Hearth

Contemporary floating hearth below the fireplace

Nothing here just yet
It looks like this style isn’t available right now. Browse other fireplace accessories to find something that fits your space.
Nothing here just yet
It looks like this style isn’t available right now. Browse other fireplace accessories to find something that fits your space.
Nothing here just yet
It looks like this style isn’t available right now. Browse other fireplace accessories to find something that fits your space.

Design your Fire

Mix, match, and visualise – design your dream fireplace in just a few clicks.

Specifications

Select Model
Compare with...

Specification

—

Max heat output

5.8kW

—

Efficiency Rating

(5.0)

—

Zero Clearance

—

Features

  • Smart Heat

  • Powered Direct Vent Heat

  • Zero Clearance

  • Suitable for Retrofit

  • Hearth Options (Optional)

  • Mantel Surround (Optional)

—

<SpecsTable>

 <Row>

   <Title>Specification</Title>

   <Data type="image" src="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6996a462ecfbfb7a74f6dee2_Technical%20-%20TC970.svg" alt="TC970 Technical diagram" />

 </Row>

 <Row>

   <Title>Pricing</Title>

   <Data type="text">From $8,495 NZD+ Extras*</Data>

 </Row>

 <Row>

   <Title>Features</Title>

   <Data type="list">

     <Item>Clean Air Approved</Item>

     <Item>Direct Vent Flue Technology</Item>

     <Item>Integrated Handle Design</Item>

   </Data>

 </Row>

 <Row>

   <Title>Max Heat Output</Title>

   <Data type="text">19 kW</Data>

 </Row>

 <Row>

   <Title>Est. Heating Area</Title>

   <Data type="text">220m2</Data>

 </Row>

 <Row>

   <Title>Efficiency</Title>

   <Data type="text">66%</Data>

 </Row>

 <Row>

   <Title>Emissions</Title>

   <Data type="text">0.93g/kg</Data>

 </Row>

 <Row>

   <Title>ULEB Approved</Title>

   <Data type="tick" value="no" />

 </Row>

 <Row>

   <Title>Clean Air Approved</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Damper Control</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Max Log Size</Title>

   <Data type="text">750mm</Data>

 </Row>

 <Row>

   <Title>Appliance Size</Title>

   <Data type="text">1175W x 800H x 574D mm</Data>

 </Row>

 <Row>

   <Title>Viewable Glass Size</Title>

   <Data type="text">945W x 483H mm</Data>

 </Row>

 <Row>

   <Title>Steel Thickness</Title>

   <Data type="text">5mm Internal, 4mm external</Data>

 </Row>

 <Row>

   <Title>Warranty</Title>

   <Data type="text">10 Years Firebox Warranty<Break />1 Years Total Warranty</Data>

 </Row>

 <Row>

   <Title>Fascia Options</Title>

   <Data type="text">Frameless Trim, Linear Fascia</Data>

 </Row>

 <Row>

   <Title>Price Inclusions &amp; Extras</Title>

   <Data type="text">Includes: Firebox, Fire Gloves &amp; Moisture Meter<Break />Extras: Flue, Install, and Accessories</Data>

 </Row>

</SpecsTable>

‍

<SpecsTable>

 <Row>

   <Title>Specification</Title>

   <Data type="image" src="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6996a4f2434566f5360128cd_Technical%20-%20TFS650.svg" alt="TFS650 Technical diagram" />

 </Row>

 <Row>

   <Title>Pricing</Title>

   <Data type="text">From $5,295 NZD+ Extras*</Data>

 </Row>

 <Row>

   <Title>Features</Title>

   <Data type="list">

     <Item>Ultra Low Emission Burner (ULEB)</Item>

     <Item>Clean Air Approved</Item>

     <Item>Direct Vent Flue Technology</Item>

     <Item>Insulated Flue System</Item>

     <Item>Integrated Handle Design</Item>

   </Data>

 </Row>

 <Row>

   <Title>Max Heat Output</Title>

   <Data type="text">12.5 kW</Data>

 </Row>

 <Row>

   <Title>Est. Heating Area</Title>

   <Data type="text">187m2</Data>

 </Row>

 <Row>

   <Title>Efficiency</Title>

   <Data type="text">68.3%</Data>

 </Row>

 <Row>

   <Title>Emissions</Title>

   <Data type="text">0.65g/kg</Data>

 </Row>

 <Row>

   <Title>ULEB Approved</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Clean Air Approved</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Damper Control</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Max Log Size</Title>

   <Data type="text">450mm</Data>

 </Row>

 <Row>

   <Title>Appliance Size</Title>

   <Data type="text">650W x 632H x 526D mm</Data>

 </Row>

 <Row>

   <Title>Viewable Glass Size</Title>

   <Data type="text">605W x 483H mm</Data>

 </Row>

 <Row>

   <Title>Steel Thickness</Title>

   <Data type="text">5mm Internal, 4mm external</Data>

 </Row>

 <Row>

   <Title>Warranty</Title>

   <Data type="text">10 Years Firebox Warranty<Break />1 Years Total Warranty</Data>

 </Row>

 <Row>

   <Title>Price Inclusions &amp; Extras</Title>

   <Data type="text">Includes: Firebox, Fire Gloves &amp; Moisture Meter<Break />Extras: Flue, Install, Plinths and Bases.</Data>

 </Row>

</SpecsTable>

‍

<SpecsTable>

 <Row>

   <Title>Specification</Title>

   <Data type="image" src="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6996a531d5c5a1457fbb6880_Technical%20-%20TFS850.svg" alt="TFS850 Technical diagram" />

 </Row>

 <Row>

   <Title>Pricing</Title>

   <Data type="text">From $6,295NZD+ Extras*</Data>

 </Row>

 <Row>

   <Title>Features</Title>

   <Data type="list">

     <Item>Ultra Low Emission Burner (ULEB)</Item>

     <Item>Clean Air Approved</Item>

     <Item>Direct Vent Flue Technology</Item>

     <Item>Insulated Flue System</Item>

     <Item>Integrated Handle Design</Item>

   </Data>

 </Row>

 <Row>

   <Title>Max Heat Output</Title>

   <Data type="text">16.3 kW</Data>

 </Row>

 <Row>

   <Title>Est. Heating Area</Title>

   <Data type="text">245m2</Data>

 </Row>

 <Row>

   <Title>Efficiency</Title>

   <Data type="text">66%</Data>

 </Row>

 <Row>

   <Title>Emissions</Title>

   <Data type="text">0.66g/kg</Data>

 </Row>

 <Row>

   <Title>ULEB Approved</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Clean Air Approved</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Damper Control</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Max Log Size</Title>

   <Data type="text">650mm</Data>

 </Row>

 <Row>

   <Title>Appliance Size</Title>

   <Data type="text">818W x 632H x 526D mm</Data>

 </Row>

 <Row>

   <Title>Viewable Glass Size</Title>

   <Data type="text">765W x 483H mm</Data>

 </Row>

 <Row>

   <Title>Steel Thickness</Title>

   <Data type="text">5mm Internal, 4mm external</Data>

 </Row>

 <Row>

   <Title>Warranty</Title>

   <Data type="text">10 Years Firebox Warranty<Break />1 Years Total Warranty</Data>

 </Row>

 <Row>

   <Title>Price Inclusions &amp; Extras</Title>

   <Data type="text">Includes: Firebox, Fire Gloves &amp; Moisture Meter<Break />Extras: Flue, Install, Plinths and Bases.</Data>

 </Row>

</SpecsTable>

‍

<SpecsTable>

 <Row>

   <Title>Specification</Title>

   <Data type="image" src="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6996a551c5ffba772eb74ee4_Technical%20-%20TFS1000.svg" alt="TFS1000 Technical diagram" />

 </Row>

 <Row>

   <Title>Pricing</Title>

   <Data type="text">From $6,995NZD+ Extras*</Data>

 </Row>

 <Row>

   <Title>Features</Title>

   <Data type="list">

     <Item>Clean Air Approved</Item>

     <Item>Direct Vent Flue Technology</Item>

     <Item>Insulated Flue System</Item>

     <Item>Integrated Flue System</Item>

   </Data>

 </Row>

 <Row>

   <Title>Max Heat Output</Title>

   <Data type="text">19 kW</Data>

 </Row>

 <Row>

   <Title>Est. Heating Area</Title>

   <Data type="text">285m2</Data>

 </Row>

 <Row>

   <Title>Efficiency</Title>

   <Data type="text">66%</Data>

 </Row>

 <Row>

   <Title>Emissions</Title>

   <Data type="text">0.79g/kg</Data>

 </Row>

 <Row>

   <Title>ULEB Approved</Title>

   <Data type="tick" value="no" />

 </Row>

 <Row>

   <Title>Clean Air Approved</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Damper Control</Title>

   <Data type="tick" value="yes" />

 </Row>

 <Row>

   <Title>Max Log Size</Title>

   <Data type="text">750mm</Data>

 </Row>

 <Row>

   <Title>Appliance Size</Title>

   <Data type="text">998W x 615H x 524D mm</Data>

 </Row>

 <Row>

   <Title>Viewable Glass Size</Title>

   <Data type="text">871W x 368H mm</Data>

 </Row>

 <Row>

   <Title>Steel Thickness</Title>

   <Data type="text">5mm Internal, 4mm external</Data>

 </Row>

 <Row>

   <Title>Warranty</Title>

   <Data type="text">10 Years Firebox Warranty<Break />1 Years Total Warranty</Data>

 </Row>

 <Row>

   <Title>Price Inclusions &amp; Extras</Title>

   <Data type="text">Includes: Firebox, Fire Gloves &amp; Moisture Meter<Break />Extras: Flue, Install, Plinths and Bases.</Data>

 </Row>

</SpecsTable>

‍

Related Articles

All Articles
News

Old flame, new attraction: Introducing Escea Wood Fireplaces

Innovating an industry as old as time, Escea proudly debuts their very first indoor wood fireplaces.
Guides

Planning a Wood Fire in NZ? Here’s Everything You Need to Know

Everything you need to know about planning, buying, and installing your wood fireplace in New Zealand.
Guides

Wood Fireplaces: Know Your Flue Types

Understand wood fireplace flue choices and how advanced technology, including Escea’s Direct Vent technology, offers homeowners better overall home performance.
Articles

WATCH: Escea's Direct Vent Technology Explained

We explain what Direct Vent Wood Fire Technology is, how it functions and why is it so much better for you and your home.

Popular
Downloads

TC970

<Header>

 <Title>Specifications</Title>

 <Description>From CAD and BIM files to Builder and Architect Sheets – everything you need to support seamless fireplace specification, including flue design, clearance details, and finishing guides.</Description>

</Header>

<DownloadSet>

 <DownloadList>

   <Download url="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6a02574a92b0535c3ab1723b_630861_0%20TC970%20NZ%20Information%20Sheet.pdf" slug="630861-tc970-information-sheet-nz" popular="true">

     <Label>Information Sheet</Label>

   </Download>

   <Download url="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6a6811355219c9ec56809e60_TC970%20Clean%20Air%20-%20CAD.zip" slug="tc970-cad" popular="true">

     <Label>CAD/BIM</Label>

   </Download>

 </DownloadList>

</DownloadSet>

<Header>

 <Title>Installation</Title>

 <Description>Detailed resources to assist with installing an Escea fireplace or accessory.</Description>

</Header>

<DownloadSet>

 <DownloadList>

   <Download url="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6a2b4fa370113ccd8140f8ab_ecnatt15560_630821_3_tc970_nz_installation_manual_sml.pdf" slug="630821-tc970-installation-manual-nz" popular="true">

     <Label>Installation Manual</Label>

   </Download>

 </DownloadList>

</DownloadSet>

<Header>

 <Title>User Guides</Title>

 <Description>Everything you need to get the most from your Escea fireplace – from operating instructions to care and maintenance information.</Description>

</Header>

<DownloadSet>

 <DownloadList>

   <Download url="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6a13d8ed37421d3256d2c561_630555_1-escea-fireplace-heating-area-guide%20(1).pdf" slug="630555-heating-area-guide-au-nz">

     <Label>Heating Area Guide</Label>

   </Download>

   <Download url="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6a20d82feaead05215de00e0_how-to-light-flier.pdf" slug="wood-fireplace-lighting-guide">

     <Label>Wood Fireplace Lighting Guide</Label>

   </Download>

 </DownloadList>

</DownloadSet>

<Header>

 <Title>Other</Title>

 <Description>Certification documents, warranty information, and other helpful resources.</Description>

</Header>

<DownloadSet>

 <DownloadList>

   <Download url="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/69f3eaebed49812223814316_630281_8%20Escea%20Warranty%20Terms%20and%20Conditions%20ANZ.pdf" slug="630281-escea-warranty-terms-and-conditions-anz" popular="true">

     <Label>Warranty Booklet</Label>

   </Download>

   <Download url="https://cdn.prod.website-files.com/694f6cee3d482a33d9427147/6a2230bd3bc8f4b2ea325877_0705a-tc970-nes.pdf" slug="tc970-certification-nz">

     <Label>TC970 Certification</Label>

   </Download>

 </DownloadList>

</DownloadSet>

‍

All Downloads

FAQs

What is a Direct Vent wood fire?

Essentially, it comes down to airflow – where it comes from and where it ends up.

‍

Older wood fireplaces draw air from inside the home to fuel the fire. This creates draughts, disrupts natural airflow, and often require additional wall vents to replace the air being consumed.

‍

A Direct Vent wood fire works differently. It draws fresh air from outside the home for combustion and expels exhaust back outside through a dual flue system. The firebox air operates independently from the room air — the two don't mix. Because these wood fires don't rely on indoor air to burn, it eliminates draughts, removes the need for extra venting, and won't compete with rangehoods or other ventilation systems. The result is wood fire that ultimately heats your home more efficiently.

‍

Learn more about Direct Vent Technology, or explore Escea's Direct Vent Wood Fireplaces here.

Explore Wood Fireplaces

What is the best way to light a wood fireplace?

Escea wood fires are best lit using the 'top-down method'. Start by placing larger logs at the bottom, then layer smaller pieces on top, finishing with thin kindling and scrunched newspaper or wood shavings. Firelighters are optional.

‍

As the fire starts, leave the door slightly ajar to help establish airflow. Once the flames are burning strongly, close the door. A well-laid fire should establish within 10–15 minutes. When the fire has burned down to red coals, briefly crack the door to boost airflow before adding more wood.

Do I need consent to install a wood fireplace?

In New Zealand, installing a wood fireplace requires building consent. Wood fires must be installed in accordance with local building codes and regional air quality regulations. Requirements can vary depending on where you live, the type of home, and the model being installed.

‍

Your installer or local council can confirm exactly what’s needed for your property. Your local Escea retailer will also be familiar with regional requirements and can guide you through the process.

‍

Are wood fireplaces safe?

Yes, modern wood fireplaces are safe when they're installed correctly and meet the right consent and clearance requirements. A trained installer will make sure the fire and flue are set up properly.

‍

Make sure you take extra care when the door is open for lighting or loading wood, as sparks or embers can escape. A non-combustible hearth is required for this reason. Wood fires also get hot to touch, so always supervise children and pets or use a fireguard if needed.

‍

For the safest, cleanest burn, use dry, seasoned wood, and make sure the flue is cleaned regularly. With good installation and simple maintenance, a modern wood fireplace is a safe and reliable way to heat your home.

Explore Wood Fireplaces
View More

Find a retailer near you

See this Escea fireplace in person and get expert advice from your local specialist.

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
